QT2-10 Semi Automatic Clay Block Making Machine Earth Soil Lego Brick Machine

This machine can produce 2 pieces block at one time.Using hydraulic technology,so the blocks produced are of good quality, large density and high strength.There is a wide range raw material available cement, sand, clay, shale, fly ash and white lime or other materials.
  • QT2-10

  • Fuda

Availability:
Quantity:
 Host Machine Technical Specifications:
Overall size:(mm) 2100(L*1150(W*2200(H host
Cycle time: 10~15s
Power:  11KW
Weight: 1600KG
Rated Pressure: 21mpa
Capacity 4800pcs/8hours









Mixer Technical Specifications:
Name: JQ350 MIXER mixer
Power 5.5KW
Feeding Capacity 500L
Discharing Capacity 350L
Weight 500KGS
Size 1200*1200*1400MM
Production Capacity 6~8CBM/Hour









Belt Conveyor Technical Specifications:
Name Belt Conveyor conveyor
Power 1.5KW
Length 6M
Weight 200KG
Load Kilogram/Meter 100KG









Crusher Technical Specifications:
Name Crusher crusher
Size  1100*1100*1400mm
Max. Feeding size 300x400
Capacity(t/day): 5-10T
Power:  5.5KW
Weight:  500KG









Screener Technical Specifications:
Name Screener screener
Size  1900*750*1500mm
Diameter of hole :  8mm
Capacity(t/day): 5-10T
Power:  0.75KW
Weight:  260KG









Capacity In Theory
No Brick Size Brick Types PCS/Mold PCS/Hour PCS/8Hours
1 300*150*100mm 1 2 600 4800
2 300*150*100mm 2 2 600 4800
3 150*150*100mm 3 4 1200 9600
4 225*112.5*60mm 4 2 600 4800

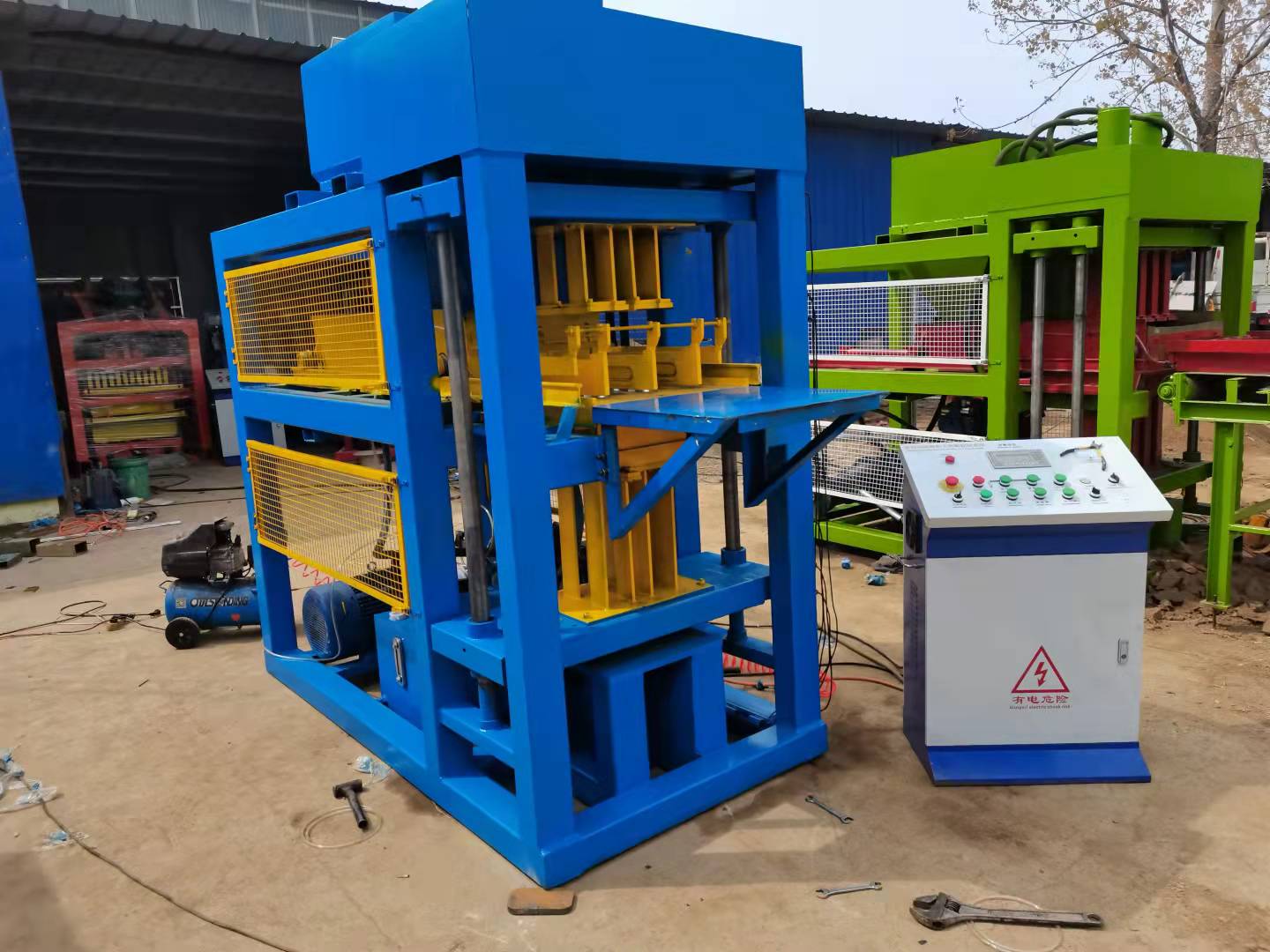

4)Block machine main parts pictures

1-10 生产线_副本

HTB1iEDLk_nI8KJjy0Ffq6AdoVXaq






For more machine details please feel free contact us.
